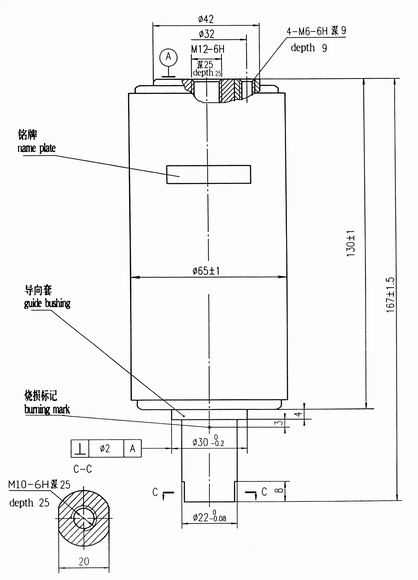

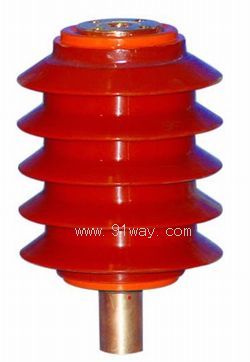

參數名稱

Parameter name

單位

Unit

數值

Value

額定電壓Rated voltage

kV

12

額定電流Rated current

A

630

額定頻率Nominal frequency

Hz

50

短時(1min)工頻耐受電壓
Short time power frequency withstand voltage (1min)

kV

42

雷電沖擊耐受電壓Lightning impulse withstand voltage

kV

75

額定短路開斷電流Rated short circuit breaking current

kA

12.5

額定峰值耐受電流Rated peak withstand current

kA

31.5

額定短路關合電流Rated short circuit making current

kA

31.5

額定短時耐受電流Rated short time withstand current

kA

12.5

額定短路持續時間Rated duration of short circuit

S

4

額定單個電容器組開斷電流Rated breaking current of single capacitor bank

A

630

額定背對背電容器組開斷電流
Rated breaking current of back to back capacitor bank

A

400

額定短路開斷電流次數Rated short circuit breaking current

次time

30

機械壽命Mechanical endurance

次

10000

觸頭自閉力Closing force due to bellow and atmosphere

N

60±30

額定開距下的觸頭反力Force required to hold contacts open at full stroke

N

160±30

額定觸頭壓力下限時的回路電阻Circuit resistance at lower limit of rated contact force

μΩ

≤35

觸頭允許磨損厚度Contact limit erosion

mm

3

真空滅弧室內部氣體壓力Gas pressure inside vacuum interrupter

Pa

≤1.33×10ˉ³

運動部分的質量Weight of moving parts

kg

0.35

真空滅弧室質量Weight of vacuum interrupter

kg

1.2

觸頭開距Clearance between open contacts

mm

8±1

平均分閘速度Average opening speed

m/s

1.2±0.2

平均合閘速度Average closing speed

m/s

0.8±0.2

額定觸頭壓力Rated contact force

N

1200±200

觸頭合閘彈跳時間Contact bouncing duration at closing operation

ms

≤2

觸頭合閘和分閘不同期性Out of simultaneity of contact closing and opening

ms

≤2

分閘觸頭反彈幅值Bouncing back amplitude of opening contact

mm

≤2
