SOW,SOL型蝸殼式中開雙吸泵產品詳細說明：

SOW系列單級雙吸中開蝸殼式離心泵，主要供輸送溫度不高于105℃的清水或理化性質類似于水的液體。單級雙吸泵適用于自來水廠、泵站、電站、空調循環用水、采暖用熱水循環、工業供水系統、消防系統、船舶、煉油工業（一般性液體）等輸送液體的場合。

SOW,SOL型蝸殼式中開雙吸泵介紹

一、SOW型單級雙吸泵結構特點：
1. 結構緊湊 外形美觀，穩定性好，便于安裝。
2. 運行平穩 優化設計的雙吸葉輪使軸向力減小到最低限度，且有優異水力性能的葉型，并經精密鑄造，泵殼內表面及葉輪表面極其光華具有顯著的抗汽蝕性能和高效率。
3. 軸 承 選用SKF及NSK軸承保證運行平穩，噪音低，使用壽命長。
4. 軸 封 選用BURGMANN機械密封或填料密封。能保證8000小時運行無泄漏。
5. 安裝形式 裝配時不需調整，可根據現場使用條件。分立式或臥式安裝。
6. 加裝自吸裝置，可實現自動吸水，即不需安裝底閥，不需真空泵，不需倒灌，泵可以啟動。

二、SOW型單級雙吸泵應用范圍：
泵的零件用不銹鋼板壓制，經激光焊接而成，并有多種牌號的不銹鋼可供選用，因而SLG型泵的用途十分廣泛，主要適用于輸送各種潔凈水及輕腐蝕液體，可用于 住宅供水及增壓

工業鍋爐給水　
空調系統循環體會水　
水處理和反滲透系統
食品工業、醫藥工業用水

三、SOW型單級雙吸泵工作條件：
流量范圍：0.8m3/h~120 m3/h；
揚程范圍：5.6m~330m；
溫度范圍：-20℃~120℃；
輸送液體種類：各種清潔水及輕腐蝕液體；
泵腔承壓：≤4.0MPa。

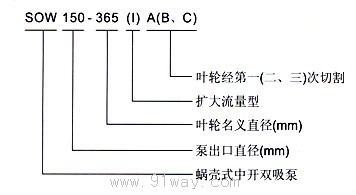

四、SOW型單級雙吸泵型號意義：



五、SOW型單級雙吸泵技術參數：

泵型號		流量Q		揚程 (m)	轉速 (rpm)	功率 (kW)	效率 (%)	必需汽 蝕余量 (m)	泵重 (kg)
		(m3/h)	(L/s)
80-220(I)		22.0 83.5 121.0	6.1 23.2 33.6	17.0 13.8 10.0	1480	5.5	82	1.6	181
	A	20.0 77.2 108.0	5.6 21.4 30.0	14.8 11.8 8.7		4	81
	B	17.5 70.4 96.0	4.86 19.6 26.6	12.4 9.8 7.7		3	80.5
	C	16.0 64.4 83.0	4.4 17.9 23.0	10.6 8.2 6.8		3	78
		60.0 164.5 240.0	16.7 45.7 66.7	64.5 55.0 40.0	2950	37	82	4.5	181
	A	59.0 152.9 219.0	16.3 42.5 60.8	58.0 47.5 34.0		30	81
	B	55.0 138.5 199.0	15.3 38.5 55.3	49.0 39.0 30.0		30	80.5
	C	52.0 128.4 170.0	14.4 35.7 47.0	42.0 33.5 27.5		22	77.8
80-220		17.0 66.5 108.0	4.7 18.5 30.0	16.0 12.8 7.8	1480	4	81	1.7	181
	A	16.0 61.1 98.0	4.4 17.0 27.2	13.9 10.8 7.0		3	80
	B	15.0 55.8 85.0	4.2 15.5 23.6	11.8 9.0 6.2		3	78
	C	14.5 51.3 72.0	4.0 14.3 20.0	10.0 7.6 6.1		2.2	74
		60.0 134.5 218.0	16.6 37.4 60.6	62.0 51.0 32.0	2950	30	81	3.5	181
	A	58.0 124.2 197.0	16.1 34.5 54.7	53.5 43.5 28.0		30	80
	B	57.0 113 170.0	15.8 31.4 47.2	45.0 36.0 25.0		22	78.2
	C	55.0 105 142.0	15.2 29.2 39.4	37.8 31.0 24.0		18.5	74
80-280(I)		26.0 104.5 138.0	7.2 29.0 38.3	24.5 22.5 18.0	1480	11	78.5	2.3	194
	A	25.0 96 129.0	6.9 26.7 35.8	22.0 19.0 16.0		11	78
	B	22.0 88.1 116.0	6.1 24.5 32.2	19.5 16.0 13.0		7.5	76
	C	21.0 79.4 105.0	5.8 22.0 29.0	16.8 13.0 10.5		5.5	75
		80.0 208.0 280.0	22.0 57.8 77.8	107.0 90.0 77.5	2950	75	78.5	6.3	194
	A	78.0 192.4 235.0	21.7 53.4 65.3	92.5 77.0 68.0		75	77.5
	B	75.0 174.7 220.0	20.8 48.5 61.1	77.5 63.5 55.0		55	76
	C	74.0 155.0 200.0	20.5 43.0 55.6	64.0 50.0 45.0		37	75
80-280		22.0 86.0 112.0	6.1 23.9 31.1	25.9 20.7 16.5	1480	7.5	77	1.9	194
	A	21.0 80.0 102.0	5.8 22.3 28.3	21.8 18.1 14.3		7.5	76
	B	19.5 73.2 92.0	5.4 20.3 25.5	18.7 15.0 12.0		5.5	75
	C	18.0 66.8 82.0	5.0 18.6 22.8	15.8 12.5 10.5		4	74
		60.0 172.0 220.5	16.7 47.8 61.2	102.0 82.5 66.0	2950	75	77	6.8	194
	A	58.0 160.0 203.0	16.1 44.4 56.3	88.0 71.5 57.0		55	76.2
	B	57.0 146.7 188.5	15.8 40.8 52.3	74.0 60.0 49.0		45	75.2
	C	56.0 132.6 170.0	15.5 36.8 47.2	61.0 49.0 40.0		30	74.4
80-350(I)		29.0 114.4 150.0	8.1 31.8 41.7	43.5 38.8 29.3	1480	22	71.5	2.3	204
	A	26.0 105.5 133.0	7.2 29.3 36.9	37.5 33.0 25.0		15	70.5
	B	22.0 96.3 117.0	6.1 26.8 32.5	32.0 27.5 22.0		15	70
	C	20.0 87.1 102.0	5.6 24.2 28.3	26.0 22.5 17.9		11	67.5
		26.0 100.0 132.0	7.2 27.8 36.7	43.0 35.5 27.9	1480	15	73	2.5	204
	A	22.0 93.1 120.0	6.1 25.9 33.3	37.0 30.8 23.0		15	70
	B	20.0 82.8 98.0	5.6 23.0 27.2	31.0 25.5 22.8		11	66
	C	18.0 70.0 71.0	5.0 19.4 19.7	24.0 20.0 19.0		7.5	64
100-260(I)		38.0 145.0 212.0	10.6 40.3 58.9	23.5 188 13.1	1480	11	82.5	2.4	207
	A	37.0 132.9 192.0	10.3 36.9 53.0	20.1 15.8 11.5		11	81
	B	36.0 122.9 173.0	10.0 34.1 48.1	17.0 13.5 10.2		7.5	79
	C	34.0 115.9 154.0	9.4 32.2 42.8	14.5 11.0 8.9		5.5	77.5
		148.5 289.0 375.0	41.3 80.3 104.2	90.0 75.0 62.0	2950	90	85.5	7.1	207
	A	120.8 264.9 340.0	33.6 73.6 94.0	88.5 63.0 52.9		75	80.5
	B	70.0 240.6 325.0	19.4 66.8 90.3	67.5 52.0 43.5		55	79
	C	60.0 223.4 295.0	16.7 62.0 81.9	57.2 44.8 36.0		45	78
100-260		30.0 123.5 170.0	8.3 34.3 47.2	21.7 17.0 12.5	1480	11	81.5	1.9	207
	A	28.0 114.0 154.0	7.8 31.7 42.8	19.0 14.5 11.3		7.5	79.5
	B	26.0 105.9 143.0	7.2 29.4 39.7	16.3 12.5 9.2		7.5	78
	C	25.0 99.3 131.0	6.9 27.6 36.4	13.3 11.0 7.9		5.5	76
		52.0 245.5 340.0	14.4 68.2 94.4	88.0 68.0 50.5	2950	75	81.5	7.4	207
	A	51.5 227.7 310.0	14.3 63.3 86.1	76.0 58.5 53.5		55	79.5
	B	50.5 212.6 280.0	14.0 59.0 77.8	65.0 51.0 37.0		45	77.5
	C	49.0 195.2 260.0	13.6 54.2 72.2	55.0 43.0 31.5		37	76
100-320(I)		47.0 185.5 225.0	13.1 51.5 62.5	38.1 31.2 26.0	1480	22	80	2.6	223
	A	42.0 172.0 204.0	11.7 47.9 56.7	33.2 27.0 22.5		18.5	79.6
	B	38.0 157.5 184.0	10.6 43.8 51.1	27.9 22.5 18.5		15	79.3
	C	37.0 142.8 165.0	10.3 39.7 45.8	23.2 18.5 16.0		11	79
		185.0 368.0 450.0	51.4 102.2 125.0	148.0 123.0 102.0	2950	200	80	11	223
	A	140.0 341.6 410.0	38.9 94.9 113.9	130.0 106.0 89.5		132	79.6
	B	100.0 314.8 370.0	27.7 87.4 102.8	110.0 90.0 77.3		110	79.3
	C	119.0 245.4 325.0	33.1 68.2 90.3	93.5 74.0 64.0		90	79
100-320		50.0 141.5 174.0	13.9 39.3 48.3	36.0 29.5 25.5	1480	18.5	78	2.2	223
	A	48.0 131.6 164.0	13.3 36.6 45.6	31.0 25.5 21.6		15	77.6
	B	47.0 120.0 152.0	13.1 33.3 42.2	26.0 21.2 17.9		11	77.3
	C	44.0 112.4 143.0	12.2 31.2 39.7	21.5 17.0 14.1		11	77
		70.0 283.0 350.0	194 78.6 97.2	146.0 119.0 101.0	2950	132	78	9.5	223
	A	65.0 263.3 360.0	18.1 73.1 100.0	125.0 103.0 87.0		110	77.6
	B	61.3 237.8 310.0	17.0 66.0 86.1	106.0 84.0 72.0		90	77.3
	C	60.9 215.5 287.0	16.9 60.0 79.7	88.0 69.0 58.0		75	77
100-400(I)		70.0 185.5 241.5	19.4 51.5 67.0	63.0 52.0 39.0	1480	45	73	2.5	241
	A	65.0 170.6 213.0	18.1 47.4 59.2	53.0 44.0 34.0		30	72
	B	62.0 158.6 190.0	17.2 44.0 52.8	46.0 38.0 31.2		30	71
	C	58.0 141.6 178.0	16.1 39.3 49.4	35.5 30.3 22.5		18.5	69
100-400		60.0 163.0 217.0	16.7 45.3 60.3	60.9 52.0 41.1	1480	37	72	3.1	241
	A	58.0 149.9 188.0	16.1 41.6 52.2	50.2 44.0 35.0		30	69
	B	54.0 138.4 168.0	15.0 38.5 46.7	42.9 37.5 31.0		22	66.5
	C	51.0 121.1 135.0	14.2 33.6 37.5	33.5 28.7 25.8		18.5	63
125-240(I)		100.0 274.6 370.0	27.8 76.3 102.8	20.2 14.8 9.1	1480	18.5	85.5	1.8	249
	A	92.0 259.3 332.0	25.6 72.0 92.2	18.3 13.2 8.3		15	84.5
	B	82.0 232.4 285.0	22.8 64.5 79.2	15.9 10.6 7.6		15	82.5
	C	78.0 210.5 240.0	21.7 58.5 66.7	13.2 8.7 6.8		11	77.5
		139.5 533.5 715.0	38.7 148.2 198.6	83.5 60.0 40.0	2950	132	85.5	6.8	249
	A	124.0 496.7 650.0	34.4 138.0 180.6	73.0 52.0 36.0		110	84
	B	119.0 454.3 550.0	33.1 126.2 152.8	63.5 43.5 32.0		75	82
	C	103.0 411.6 460.0	28.6 114.3 127.8	63.0 34.0 30.0		75	77
125-240		100.0 256.5 320.1	27.8 71.2 88.9	20.2 15.1 10.8	1480	15	84.5	2.2	249
	A	94.0 242.5 300.4	26.1 67.4 83.4	17.6 13.5 9.1		15	84
	B	90.0 223.8 265.0	25.0 62.2 73.6	15.0 11.5 8.4		11	82
	C	82.0 199.1 220.0	22.8 55.3 61.1	12.4 9.1 7.8		7.5	78
		111.0 472.5 662.0	30.8 131.2 183.9	84.0 60.5 40.0	2950	110	84.5	8.7	249
	A	106.0 442.2 592.0	29.4 122.8 141.7	73.5 53.0 36.4		90	84
	B	102.0 393.7 510.0	28.3 109.4 141.0	62.8 42.0 33.5		75	82
	C	90.0 369.5 415.0	25.0 102.6 115.0	52.5 37.0 33.0		75	77
125-300(I)		100.0 270.0 375.0	27.8 75.0 104.2	32.5 27.0 21.0	1480	30	84	1.9	274
	A	80.3 243.7 348.0	22.3 67.7 96.7	27.5 22.0 15.5		22	82
	B	75.0 220.5 310.0	20.8 61.2 86.1	23.5 18.0 12.5		18.5	80
	C	60.5 195.8 270.0	16.8 54.4 75.0	19.0 14.2 10.5		15	78
		380.0 535.5 640.0	105.6 148.8 177.8	120.0 108.0 92.6	2950	200	84	7.6	274
	A	285.0 483.4 630.0	79.2 134.3 175.0	103.5 88.0 77.8		160	82
	B	190.0 437.2 600.0	52.8 121.5 166.7	92.0 72.0 60.0		132	80
	C	90.2 389.0 500.0	25.1 108.1 138.9	80.0 57.0 43.5		110	78
125-300		100.0 242.5 370.0	27.8 67.4 102.8	32.0 25.0 17.1	1480	30	83	1.9	274
	A	90.3 222.3 290.0	25.1 61.8 80.6	26.3 21.0 15.0		18.5	82
	B	80.0 202.9 250.0	22.2 56.4 69.4	22.1 17.5 132.2		15	79
	C	70.1 179.5 210.0	19.5 49.9 58.3	17.3 13.7 11.9		11	76
		230.0 479.0 580.0	63.9 133.1 161.1	122.0 100.0 82.0	2950	200	83	7.9	274
	A	182.0 437.7 540.0	50.5 121.6 150.0	106.2 83.5 63.5		160	82
	B	128.0 400.8 510.0	35.6 111.3 141.7	89.0 70.0 51.0		110	79
	C	85.0 355.2 428.0	23.6 98.7 118.9	72.0 55.0 42.0		90	76
125-380(I)		125.0 310.0 435.0	340.7 86.3 120.8	53.1 47.0 37.5	1480	75	80	2.1	298
	A	104.0 282.8 395.0	28.9 78.6 109.7	45.0 39.0 31.8		45	79
	B	93.0 254.2 350.0	25.8 70.6 97.2	36.9 31.5 25.0		37	78
	C	85.5 221.9 295.2	23.7 61.6 109.8	27.9 24.0 18.8		30	76
125-380		100.2 278.0 396.5	27.8 77.2 110.0	50.2 43.0 33.1	1480	55	79	2.4	298
	A	92.1 257.9 249.6	25.8 71.6 97.1	42.9 37.0 28.4		45	78
	B	84.0 234.1 300.0	23.3 65.0 83.3	35.9 30.5 24.1		30	77
	C	798.1 209.8 250.5	22.0 58.3 69.6	28.9 24.5 20.0		22	76
125-480(I)		109.2 328.5 380.4	30.3 91.3 105.7	86.0 76.0 71.0	1480	110	80	2.3	331
	A	100.0 307.3 350.9	27.8 85.4 97.4	74.9 66.5 55.0		90	78.5
	B	80.4 282.0 300.4	22.3 78.3 83.4	64.7 56.0 51.3		75	77
	C	60.0 250.4 270.4	16.6 69.6 75.1	54.6 44.2 40.8		45	76
125-480		100.0 294.5 370.0	27.8 81.8 102.8	81.2 69.5 61.5	1480	90	79	2.7	331
	A	90.1 274.8 320.2	25.0 76.3 88.9	70.0 60.5 55.1		75	78
	B	85.3 257.2 284.5	23.7 71.4 79.0	60.9 53.0 46.1		55	77
	C	78.5 230.0 238.8	21.8 63.9 66.3	51.2 43.5 41.3		37	76
150-280(I)		160.0 443.5 609.0	44.4 123.2 169.2	27.5 21.0 14.2	1480	37	87	2.4	347
	A	150.5 410.6 550.0	41.8 114.0 152.8	25.0 18.0 12.5		30	86
	B	130.0 367.0 480.0	36.1 101.9 133.3	22.5 15.0 11.7		22	84
	C	123.0 338.2 395.0	34.1 93.9 109.7	17.4 11.5 10.0		18.5	77
150-280		140.0 397.0 525.0	38.9 110.3 145.8	27.5 20.4 14.2	1480	30	86	2.5	347
	A	135.0 362.4 496.0	37.5 100.7 137.8	24.1 17.0 11.9		30	85
	B	128.0 340.7 446.0	35.6 94.6 123.9	21.8 14.5 10.8		22	84
	C	120.0 318.1 380.0	33.3 88.4 105.6	17.5 11.5 9.3		18.5	80
150-350(I)		180.0 447.5 592.0	50.0 124.3 164.4	45.8 38.0 31.2	1480	75	85	2.5	359
	A	175.0 404.2 580.0	48.6 112.3 161.1	38.6 31.0 22.4		55	83
	B	162.0 363.0 495.0	45.0 100.8 137.5	33.1 25.0 18.1		37	81
	C	150.0 324.7 421.0	41.7 90.2 116.9	27.0 20.0 14.9		30	78
150-350		150.0 407.5 550.0	41.7 113.2 152.8	45.0 35.0 26.8	1480	55	84	3.0	359
	A	140.0 374.1 471.0	38.9 103.9 130.8	37.9 29.5 23.2		45	82
	B	130.0 344.4 460.0	36.1 95.7 127.8	32.1 25.0 17.5		37	80
	C	125.0 311.9 390.0	34.7 86.6 108.3	26.1 20.5 15.3		30	78
150-450(I)		200.0 515.5 640.0	55.6 143.2 177.8	76.1 66.0 57.1	1480	132	82	3.4	436
	A	190.0 468.4 600.0	52.8 130.1 166.7	64.0 54.5 45.0		110	81
	B	180.0 418.5 540.0	50.0 116.3 150.0	52.3 43.5 35.0		75	80
	C	175.0 375.4 468.0	48.6 104.3 130.0	42.1 35.0 27.8		55	78.5
150-450		150.0 440.0 582.0	41.7 122.2 161.7	72.1 60.0 48.2	1480	110	81	3.7	436
	A	140.0 401.7 550.0	38.9 111.6 152.8	60.0 50.0 36.9		90	80.5
	B	129.0 359.3 490.0	35.8 99.8 136.1	49.5 40.0 30.5		75	80
	C	115.0 326.3 430.0	31.9 90.6 119.4	40.0 33.0 24.8		45	78
150-570(I)		200.0 584.0 730.0	55.6 162.2 202.8	121.0 105.0 92.1	1480	250	80	4.2	646
	A	180.0 536.2 660.0	50.0 148.9 183.3	105.0 88.5 80.0		200	79
	B	169.0 493.6 620.0	46.9 137.1 172.2	90.8 75.0 68.0		160	78
	C	150.0 450.0 530.0	41.7 125.0 147.2	77.2 61.5 55.9		132	77
150-570		200.0 537.0 620.0	55.6 149.2 172.2	111.0 90.0 81.9	1480	200	79	4.2	646
	A	96.3 499.9 580.0	26.7 138.9 161.1	96.0 78.0 70.0		160	78
	B	82.8 468.5 540.0	23.0 130.1 150.0	83.0 68.5 61.0		132	77
	C	70.0 419.2 500.0	19.4 116.4 138.9	70.0 57.5 50.0		110	76
200-340(I)		50.0 695.5 940.0	69.4 193.2 261.1	40.0 30.0 20.0	1480	75	87.5	3.3	450
	A	240.0 641.2 845.0	66.7 178.1 234.7	35.0 25.5 17.5		75	86.5
	B	230.0 586.0 750.0	63.9 162.8 208.3	30.8 21.3 16.0		55	85
	C	220.0 530.0 610.0	61.1 147.2 169.4	25.0 17.0 15.1		37	79
200-340		250.0 638.0 870.0	69.4 177.2 241.7	37.5 28.0 18.5	1480	75	86.5	2.5	450
	A	240.0 596.8 795.0	66.7 165.8 220.8	33.0 24.5 16.8		55	86
	B	235.0 552.5 705.0	65.2 153.5 195.8	28.5 21.0 15.1		45	84
	C	225.0 497.1 600.0	62.5 138.1 166.7	23.1 17.0 14.0		37	82
200-410(I)		265.0 710.0 990.0	73.6 197.2 275.0	62.8 52.0 40.0	1480	132	86.5	2.4	517
	A	249.0 641.9 895.0	69.1 178.3 248.6	64.0 42.5 30.9		110	84.5
	B	238.0 586.6 780.0	66.1 163.0 216.7	46.0 35.5 25.0		90	83
	C	220.0 525.6 660.0	61.1 146.0 166.7	38.5 28.5 21.0		75	81
200-410		250.0 649.0 865.0	69.4 180.3 240.2	62.1 48.0 37.1	1480	110	85.5	3.0	517
	A	236.0 596.1 750.0	65.6 165.6 208.3	52.2 40.5 32.5		90	84
	B	215.0 550.2 720.0	59.7 152.8 200.0	44.2 37.5 25.0		75	82
	C	209.0 495.7 590.0	58.1 137.7 163.9	35.2 28.0 22.1		55	78
200-530(I)		475.0 818.0 1080.0	131.9 227.2 300.0	102.0 91.0 77.5	1480	280	83	3.5	840
	A	460.0 750.0 965.0	127.8 208.3 268.1	86.0 76.5 66.2		250	82
	B	440.0 687.9 905.0	122.2 191.1 251.4	71.0 62.5 52.1		200	80
	C	420.0 630.0 795.0	116.7 175.0 220.8	55.0 47.5 41.8		132	78.5
200-530		260.0 735.0 955.0	72.2 204.2 265.3	98.0 81.7 66.9	1480	250	82	3.0	840
	A	250.0 670.0 880.0	69.4 186.3 244.4	82.8 68.0 57.5		180	81
	B	240.0 633.0 820.0	66.7 175.8 227.8	68.3 55.0 46.1		160	80
	C	230.0 576.3 720.0	63.9 160.1 200.0	54.8 43.5 38.0		110	78
200-660(I)		280.0 793.0 935.0	77.8 220.3 259.7	167.0 150.0 140.0	1480	450	80	3.1	990
	A	270.0 729.7 900.0	75.0 202.7 250.0	144.0 127.0 115.0		355	78.5
	B	260.0 6698 864.0	72.2 186.0 240.0	124.0 107.0 93.0		315	77
	C	250.0 637.4 770.0	69.4 177.0 213.9	10.0 88.0 80.0		250	76
200-660		250.0 721.0 860.0	69.4 200.2 238.9	156.0 132.5 120.0	1480	400	79	2.9	990
	A	240.0 670.2 790.0	66.7 186.2 219.4	132.0 114.5 103.0		315	78.5
	B	230.0 621.6 720.0	63.9 172.7 200.0	114.0 98.5 90.0		250	78
	C	215.0 570.6 690.0	59.7 158.5 191.7	98.0 83.0 72.0		200	77
250-390(I)		400.0 1052.0 1450.0	111.1 292.2 402.8	50.0 39.0 28.0	1480	160	88	2.8	665
	A	380.0 967.7 1310.0	105.6 268.8 363.9	44.9 33.0 24.0		132	86
	B	379.0 915.3 1160.0	105.3 254.3 322.2	38.0 27.0 20.2		110	83
	C	350.0 843.3 990.0	97.2 234.3 275.0	31.8 20.0 16.1		75	77.5
250-390		400.0 1030.5 1400.0	111.1 286.3 388.9	50.0 37.0 25.0	1480	132	87	4.0	665
	A	390.0 958.3 1290.0	108.3 266.2 358.3	44.0 32.0 22.2		110	86
	B	375.0 880.3 1170.0	104.2 244.5 325.0	38.0 27.0 21.8		110	84
	C	350.0 819.6 1030.0	97.2 227.7 286.1	32.0 22.0 16.0		75	82
250-470(I)		420.0 1174.5 1608.0	116.7 326.3 447	82.8 66.0 50.0	1480	280	87	3.3	830
	A	400.0 1072.2 1450.0	111.1 297.8 402.8	69.0 55.0 41.6		220	85
	B	370.0 975.2 1250.0	102.8 270.9 247.2	58.0 45.5 36.0		200	83
	C	330.0 903.3 1090.0	91.7 250.9 302.8	49.6 37.5 31.2		160	80
250-470		400.0 1081.0 1450.0	111.1 300.3 402.8	75.0 54.5 38.0	1480	220	84	3.5	830
	A	370.0 1003.9 1300.0	102.8 278.9 361.1	64.0 47.0 33.5		200	82.5
	B	350.0 911.0 1170.0	97.2 253.0 325.0	55.0 40.5 30.0		160	80.5
	C	340.0 830.0 1020.0	94.4 230.6 283.3	46.0 34.5 26.3		110	78.5
250-610(I)		800.0 1243.0 1640.0	222.2 345.3 455.6	131.0 116.0 98.0	1480	560	84	3.8	1215
	A	750.0 1154.1 1600.0	208.3 320.6 444.4	115.0 100.0 79.0		450	83.5
	B	700.0 1051.4 1480.0	194.4 291.0 411.1	95.0 83.0 63.0		315	83
	C	650.0 970.0 1360.0	180.6 269.4 377.8	78.0 66.0 50.0		250	82.5
250-610		400.0 1045.0 1415.0	111.1 290.3 393.1	126.0 104.0 81.5	1480	400	83	3.1	1215
	A	390.0 972.1 1360.0	108.3 270.0 377.8	110.0 90.0 70.0		315	82.5
	B	380.0 884.5 1240.0	105.6 245.7 344.4	91.0 74.5 58.0		250	81.5
	C	335.0 806.9 1120.0	101.4 224.1 311.1	75.0 62.0 49.5		200	80.5
300-330(I)		500.0 1099.0 1475.0	138.9 305.3 409.7	36.0 24.5 17.0	1480	110	86	4.6	630
	A	480.0 1020.0 1425.0	133.3 283.3 395.8	31.8 19.8 12.1		90	84.5
	B	460.0 970.0 1290.0	127.8 269.4 358.3	26.5 15.5 9.0		75	82
	C	440.0 920.0 1170.0	122.2 255.6 325.0	22.3 11.5 7.5		45	80
300-330		400.0 940.0 1260.0	111.1 261.1 350.0	32.1 23.0 15.0	1480	90	85	3.6	630
	A	390.0 876.6 1200.0	108.3 243.5 333.3	27.9 20.0 12.0		75	84
	B	370.0 801.0 1080.0	102.8 222.5 300.0	24.1 16.7 11.0		55	81
	C	350.0 705.0 950.0	97.2 195.8 263.9	20.5 13.7 9.0		37	77
300-450(I)		700.0 1678.5 2380.0	194.4 466.3 661.1	67.5 53.0 37.0	1480	315	88	5.2	905
	A	660.0 1576.8 2100.0	183.3 438.0 583.3	59.2 45.0 32.0		280	86.5
	B	620.0 1476.0 1800.0	172.2 410.0 500.0	50.0 36.5 27.5		200	84
	C	600.0 1360.8 1450.0	166.7 378.0 402.8	41.0 27.5 24.5		160	79
300-450		600.0 1620.0 2240.0	166.7 450.0 622.2	68.0 51.5 32.5	1480	315	87.5	5.3	905
	A	580.0 1519.2 2040.0	161.1 422.0 566.7	60.0 45.0 29.4		250	86.5
	B	560.0 1422.0 1860.0	155.6 395.0 516.7	51.0 37.5 26.2		200	84
	C	540.0 1332.0 1620.0	150.0 370.0 450.0	41.9 30.5 23.5		160	81.5
300-550(I)		700.0 1750.0 2350.0	194.4 486.1 652.8	115.0 94.0 76.0	1480	630	86	4.2	1425
	A	680.0 1645.2 2170.0	188.9 457.0 602.8	92.0 76.0 61.5		450	85.5
	B	650.0 1573.2 2130.0	180.6 437.0 591.7	77.5 62.0 47.0		355	85
	C	620.0 1515.6 1980.0	172.2 421.0 550.0	65.0 50.0 37.5		280	83.5
300-550		600.0 1550.0 2130.0	166.7 430.5 591.7	102.0 80.0 60.0	1480	450	84.5	3.9	1425
	A	590.0 1447.2 1980.0	163.9 402.0 550.0	86.4 67.0 50.5		355	83.5
	B	580.0 1360.8 1820.0	161.1 378.0 505.6	73.0 57.0 44.0		280	83
	C	570.0 1281.6 1600.0	158.3 356.0 461.1	61.0 47.5 37.2		250	82
300-710(I)		900.0 1836.0 2100.0	250.0 510.0 583.3	183.0 160.0 150.6	1480	1120	85	3.5	1690
	A	960.0 1735.2 2030.0	266.7 482.0 563.9	160.0 136.0 126.0		900	84.6
	B	800.0 1623.6 1880.0	222.2 451.0 522.2	135.0 112.0 104.0		630	84.3
	C	700.0 1537.2 1600.0	194.4 427.0 444.4	110.5 91.0 77.0		560	84
300-710		600.0 1690.0 2160.0	166.7 469.4 600.0	174.0 139.0 118.0	1480	900	83.5	4	1690
	A	580.0 1573.2 2000.0	161.1 437.0 555.6	150.0 119.0 100.0		710	83
	B	540.0 1450.8 1800.0	150.0 403.0 505.6	124.0 99.0 82.4		560	82.5
	C	510.0 1342.8 1650.0	141.7 373.0 458.3	103.0 81.0 70.0		400	82
350-380(I)		600.0 1733.0 2280.0	166.7 481.4 633.3	45.5 32.0 20.5	1480	200	86.5	6.2	865
	A	580.0 1692.0 2160.0	161.1 470.0 600.0	40.0 26.5 17.0		160	85
	B	560.0 1641.6 2080.0	155.5 456.0 577.8	34.0 21.0 12.8		132	83
	C	540.0 1602.0 1900.0	150.0 445.0 527.8	27.9 15.0 9.0		110	80.5
350-380		500.0 1424.0 1940.0	138.9 395.6 538.9	42.5 31.0 21.8	1480	160	85.5	5	865
	A	460.0 1335.6 1800.0	127.8 371.0 500.0	37.9 26.3 17.0		132	84
	B	430.0 1270.8 1610.0	119.4 353.0 447.2	32.5 22.5 15.5		110	82
	C	410.0 1188.0 1400.0	113.9 330.0 388.9	27.5 17.8 17.1		90	78
350-440(I)		1000.0 2745.0 3500.0	277.8 762.5 972.2	59.0 43.5 31.0	1480	450	87.5	8.5	1285
	A	950.0 2635.2 3450.0	263.9 732.0 958.3	50.5 35.0 22.0		355	85.5
	B	900.0 2563.2 3250.0	250.0 712.0 902.8	43.0 27.5 18.5		280	84
	C	890.0 2484.0 3200.0	147.2 690.0 888.9	36.0 21.5 13.0		220	81
350-440		750.0 2235.0 3000.0	208.3 620.8 833.3	59.0 42.5 30.0	1480	355	86.5	6.5	1285
	A	700.0 2088.0 2750.0	194.4 580.0 763.9	51.5 36.0 25.0		280	84.5
	B	680.0 1987.2 2400.0	188.9 552.0 666.7	45.0 30.0 23.0		250	82
	C	650.0 1847.6 2010.0	180.6 516.0 558.3	38.0 25.0 22.0		200	78.5
350-520(I)		1350.0 2610.0 3700.0	375.0 725.0 1027.8	94.0 70.0 48.3	1480	630	88.5	6.7	1395
	A	1100.0 2430.0 3500.0	305.6 6750.0 972.2	82.0 60.0 42.0		560	87
	B	750.0 2232.0 2850.0	208.3 620.0 791.7	73.0 50.0 37.0		400	86
	C	505 2070 2350	140.3 575 652.8	61 38 33.2		315	79
350-520		850 2450 3350	236.1 680.6 930.6	92 67 47.5	1480	630	88	7	1395
	A	800 2268 3200	222.2 630 888.9	81.5 59.5 38		500	87
	B	750 2088 2850	208.3 580 791.7	81.4 50 34.5		400	85
	C	700 1944 2500	194.4 540 694.4	60 41.5 30.5		315	83
350-640		1470 2160 2800	408.03 600 777.8	138.5 126.2 107	1480	1000	85	6.9	1500
	A	1290 2000 2600	358.3 556 722	128 116 98.3		900	84
	B	1185 1920 2500	329.2 533.3 694.4	117.8 106 88.5		800	82
	C	1110 1830 2380	308.3 508.3 661	107.8 95.6 78		710	80
	D	1050 1695 2200	291.7 470.8 611	93.8 83 68		560	78
400-550(I)		1535 2635 3420	426.3 731.9 950	98 86 70.8	1480	800	85	7	1600
	A	1470 2520 3270	408.3 700 908.3	91 79 63.9		710	83
	B	1420 2418 3140	394 671.6 872	82.6 71.8 56.8		630	81
	C	1400 2311.5 3015	388.9 642 837.5	76 64 49		630	79
	D	1380 2235.6 2900	383.3 621 805.6	69 57.8 43.8		560	77
400-550		1320 2190 2850	366.7 608.3 791.7	77 63.8 47.2	1480	500	86	5.9	1600
	A	1280 2045.5 2660	355.6 568.2 738.9	69.8 57.8 43.8		450	84
	B	1230 1882 2450	341.7 522.7 680.6	61.2 51.2 39		400	82
	C	1211 1767.6 2300	336.4 491 638.9	53.2 45 34		315	80
400-600		1571 2502 3250	436.4 695 902.8	101.2 90.2 68	1480	800	86	6.9	2100
	A	1508 2422 3100	419 672.7 861	93.2 81.8 63		710	84
	B	1500 2354 3000	416.7 654 833.3	86 74 54		630	82
	C	1470 2225.5 2750	410 618.2 764	78.8 68 51.8		560	80
	D	1505 2127.6 2500	418.2 591 722	69 59.8 47		500	78
400-600(I)		1919 3176.5 4100	533 882.4 1139	129.7 113 93.6	1480	1250	86	7.5	2100
	A	1780 3007 3910	494.4 835.3 1086	119 103.6 83.6		1120	84
	B	1740 2922.4 3800	483.3 811.8 1055.6	109.2 93 70.8		1000	82
	C	1600 2732 3550	444.4 758.8 986	99.8 83.7 63		900	80
	D	1530 2641.6 3380	425 706 938.9	90 74 57		800	78
500-520(I)		1900 3217.5 3960	527.8 893.8 1100	33.2 25 17.7	980	280	87	4.8	1528
	A	1830 3088 3800	508.3 857.8 1055.6	30.5 23 16.3		250	86
	B	1750 2964.5 3650	486 823.3 1013.9	28.6 21 15.3		220	84
	C	1680 2846 3485	466.7 790.6 968	26 18.4 13		200	82
	D	1600 2732 3180	444.4 758.9 883.3	23.8 16.3 11.75		180	80
500-520		1480 2777 3600	411 771.4 1000	31.3 22.5 14	980	220	86	4.3	1528
	A	1400 2638 3420	388.9 732.8 950	27.8 19.5 12.2		200	84
	B	1250 2484 3000	347.2 690 833.3	22 15.6 11.2		160	81
	C	1160 2178.5 2790	322.2 605.1 775	18.5 13.8 9.2		132	78
500-650(I)		1850 3510 4500	513.9 975 1250	52.5 41.5 31	980	500	88.5	5.7	2301
	A	1800 3352.5 4230	500 931 1175	49.8 38.7 28.5		450	86
	B	1740 3172.5 4000	483.3 881 1111.7	46.4 36 26.5		400	84
	C	1660 3015 3830	461.1 837.5 1064	42.2 33.2 25		355	82
	D	1560 2767.5 3600	433.3 768.8 1000	37.6 29.7 21.8		315	80
500-650		1820 2992 3890	505.6 831.3 1080	41.8 33.7 23.2	980	355	87	4.8	2301
	A	1730 2835 3695	480.6 787.5 1026	37.8 30.2 21		315	86
	B	1635 2722.5 3490	454 756.3 969.4	34 27.7 19		280	82
	C	1535 2642.5 3280	426.4 706 911	29 24 17		250	78
500-710(I)		2300 3852 5040	638.9 1070 1400	73.1 64.4 54	980	900	88.5	5.8	2967
	A	2200 3672 4840	611.1 1020 1344.4	67.2 59.2 47.1		800	87
	B	2100 3470.4 4320	583.3 964 1200	60.3 53 43		710	85
	C	2000 3204 3960	555.6 890 1100	56.4 47.7 39		560	83
	D	1920 3024 3550	533.3 840 986.1	50 42 34.2		500	81
500-710		1800 3006 3900	500 835 1083	60 49 35.6	980	560	87	5.5	2967
	A	1710 2812.5 3700	475 781.3 1027.8	53.6 44.2 31.2		450	85
	B	1615 2632.5 3375	448.6 731.3 937.5	47.7 39.3 29		400	83
	C	1518 2407.5 3175	421.7 668.7 882	41.5 34.6 26		355	79
500-800(I)		2590 3996 5190	719.4 1110 1441.7	88.7 80.6 67.9	980	1120	89	6.9	3483
	A	2460 3600 4680	683.3 1000 1300	78.4 72.8 61.8		900	87
	B	2340 3204 4100	650 890 1138.9	69.8 65.3 57		800	85
	C	2200 2880 3600	611.1 800 1000	61 58 52		630	83
500-800		2385 3474 4600	662.5 965 1277.8	70.7 62.5 47.5	980	800	88	5.2	3483
	A	2265 3330 4370	629 925 1213.9	63.1 55.8 44		710	86
	B	2150 3150 4150	597.2 875 1152.8	56.2 49.6 39.2		560	84
	C	2050 2970 3940	569.7 825 1094	48 43.6 35.8		500	80
500-860(I)		2520 4183.2 5440	700 1162 1511	124 111.2 96.2	980	1600	89	6.9	4659
	A	2380 3996 5140	661.1 1110 1428	112.4 100.7 86		1400	87
	B	2250 3780 4870	625 1050 1352.8	102.4 90.4 77.5		1250	83
	C	2115 3528 4320	587.5 980 1300	90.4 80.4 70.6		1120	80
500-860		2400 3600 4680	666.7 1000 1300	99.6 90 73	980	1120	88.5	5.5	4659
	A	2300 3492 4500	638.9 970 1250	93.4 82.9 68		1000	86
	B	2200 3384 4300	611.1 940.3 1194.4	87.2 77.2 63.8		900	84
	C	2090 3204 4085	580.6 890 1134.7	81 71.5 59		800	82
	D	1985 3081.6 3850	551.4 856 1069	75 65.8 55.6		800	80
