YR系列繞線轉子高壓三相異步電動機( H710-1000)產品詳細說明：

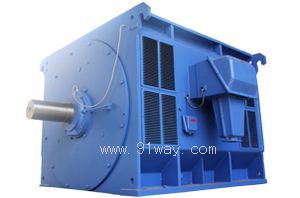

YR系列繞線轉子高壓三相異步電動機( H710-1000)

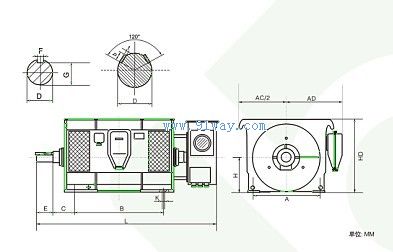

高壓三相異步電動機 YR系列繞線轉子籠型( H710-1000mm)安裝尺寸

機座號	安裝尺寸									外型尺寸
	A	B	C	D	E	F	G	H	K	AD	HD	L
710	1400	1800	530	200	350	45	185	710	56	1270	1510	4200
800	1600	2000	530	220	350	50	203	900	66	1420	1700	4300
900	1800	2240	600	250	410	56	230	900	66	1650	1900	4500
1000	2000	2500	600	280	470	63	260	1000	66	1800	2100	4600

(1)當采用滑動軸承時，C尺寸偏差不包括軸向竄動。
注：圖中尺寸僅供參考，訂貨時以制造廠提供的外形及安裝尺寸圖為準。

YR系列繞線轉子高壓三相異步電動機（H710-1000mm 6kV ）技術數據表

型號	功率(kW)	同步轉速(r/min)	額定電流(A)	效率（%）	功率因數	轉子		最大轉 矩倍數	重量
						電壓	電流
YR710-4	2800	1500	323.3	95.8	0.87	1242	1373	1.8	10500
YR710-4	3150	1500	363.3	95.9	0.87	1350	1423	1.8	11000
YR710-4	3550	1500	409.0	96	0.87	1477	1467	1.8	11500
YR710-4	4000	1500	460.4	96.1	0.87	1628	1500	1.8	12000
YR800-4	4500	1500	517.4	96.2	0.87	1623	1686	1.8	13000
YR800-4	5000	1500	574.3	96.3	0.87	1803	1680	1.8	13800
YR800-4	5600	1500	642.5	96.4	0.87	2029	1667	1.8	14500
YR710-6	2000	1000	236.8	95.6	0.85	1496	827	1.8	10500
YR710-6	2240	1000	265.3	95.6	0.85	1663	828	1.8	11000
YR710-6	2500	1000	295.7	95.7	0.85	1872	817	1.8	11500
YR710-6	2800	1000	331.2	95.7	0.85	2138	797	1.8	12000
YR800-6	3150	1000	372.2	95.8	0.85	2142	897	1.8	13000
YR800-6	3550	1000	419.1	95.9	0.85	1506	858	1.8	13800
YR800-6	4000	1000	471.7	96.0	0.85	2502	977	1.8	14500
YR800-6	4500	1000	530.1	96.1	0.85	3001	908	1.8	15000
YR710-8	1800	750	219.7	95	0.83	1071	1036	1.8	11000
YR710-8	2000	750	243.8	95.1	0.83	1225	1000	1.8	11500
YR710-8	2240	750	272.8	95.2	0.83	1227	1133	1.8	12000
YR800-8	2500	750	304.1	95.3	0.83	1239	1139	1.8	13000
YR800-8	2800	750	340.3	95.4	0.83	1448	1180	1.8	13800
YR800-8	3150	750	377.8	95.5	0.84	1446	1341	1.8	14500
YR900-8	3550	750	425.3	95.6	0.84	1576	1376	1.8	16500
YR900-8	4000	750	478.8	95.7	0.84	1733	1409	1.8	17500
YR900-8	4500	750	538.1	95.8	0.84	1928	1423	1.8	18000
YR710-10	1400	600	176.2	94.4	0.81	989	874	1.8	10500
YR710-10	1600	600	201.1	94.5	0.81	1113	885	1.8	11000
YR710-10	1800	600	226	94.6	0.81	1273	868	1.8	12000
YR800-10	2000	600	250.9	94.7	0.81	1429	858	1.8	13500
YR800-10	2240	600	280.7	94.8	0.81	1712	797	1.8	14500
YR800-10	2500	600	313	94.9	0.81	1708	897	1.8	15000
YR900-10	2800	600	345.9	95.0	0.82	1721	987	1.8	16000
YR900-10	3150	600	388.7	95.1	0.82	1914	998	1.8	17000
YR900-10	3550	600	437.6	95.2	0.82	2153.	997	1.8	18500
YR900-10	4000	600	492.5	95.3	0.82	2149	1133	1.8	19000
YR1000-10	4500	600	553.5	95.4	0.82	1860	1472	1.8	21000
YR1000-10	5000	600	614.4	95.5	0.82	2069	1468	1.8	22500
YR1000-10	5600	600	687.4	95.6	0.82	2332	1456	1.8	23500
YR710-12	1120	500	147.3	93.8	0.78	876	798	1.8	10500
YR710-12	1250	500	164.2	93.9	0.78	975	799	1.8	11000
YR710-12	1400	500	183.7	94.0	0.78	1098	791	1.8	11500
YR800-12	1600	500	209.8	94.1	0.78	1105	898	1.8	12500
YR800-12	1800	500	235.7	94.2	0.78	1264	881	1.8	13500
YR800-12	2000	500	261.6	94.3	0.78	1358	916	1.8	14000
YR800-12	2240	500	292.7	94.4	0.78	1471	948	1.8	14500
YR900-12	2500	500	322.2	94.5	0.79	1473	1045	1.8	16000
YR900-12	2800	500	360.5	94.6	0.79	1607	1073	1.8	17000
YR900-12	3150	500	405.2	94.7	0.79	1768	1097	1.8	17500
YR1000-12	3550	500	456.1	94.8	0.79	1537	1419	1.8	20000
YR1000-12	4000	500	513.4	94.9	0.79	1710	1437	1.8	21000
YR1000-12	4500	500	577	95	0.79	1924	1432	1.8	22500
YR1000-12	5000	500	640.4	95.1	0.79	2201	1385	1.8	24000
YR710-16	630	375	91.2	92.3	0.72	1075	368	1.8	10000
YR710-16	710	375	102.5	92.6	0.72	1257	353	1.8	10500
YR710-16	800	375	115.3	92.7	0.72	1518	327	1.8	11000
YR710-16	900	375	129.6	92.8	0.72	1513	372	1.8	11500
YR800-16	1000	375	143.9	92.9	0.72	1087	569	1.8	12000
YR800-16	1120	375	160.9	93	0.72	1245	554	1.8	12500
YR800-16	1250	375	179.4	93.1	0.72	1256	625	1.8	13000
YR800-16	1400	375	200.8	93.2	0.72	1450	595	1.8	13500
YR900-16	1600	375	223	93.3	0.74	1336	741	1.8	14000
YR900-16	1800	375	250.6	93.4	0.74	1447	771	1.8	14500
YR900-16	2000	375	278.1	93.5	0.74	1580	785	1.8	15500
YR1000-16	2240	375	311.2	93.6	0.74	1590	864	1.8	16000
YR1000-16	2500	375	346.9	93.7	0.74	1750	875	1.8	16500
YR1000-16	2800	375	388.2	93.8	0.74	1947	880	1.8	17500

YR系列繞線轉子高壓三相異步電動機（H710-1000mm 10kV ）技術數據表

型號	功率(kW)	同步轉速(r/min)	額定電流(A)	效率（%）	功率因數	轉子		最大轉 矩倍數	重量
						電壓	電流
YR710-4	2500	1500	177.6	95.6	0.85	1115	1375	1.8	10500
YR710-4	2800	1500	198.9	95.6	0.85	1218	1408	1.8	11000
YR710-4	3150	1500	223.6	95.7	0.85	1345	1432	1.8	11500
YR710-4	3550	1500	251.7	95.8	0.85	1497	1446	1.8	12000
YR800-4	4000	1500	280	95.9	0.85	1499	1634	1.8	13000
YR800-4	4500	1500	314.7	96	0.86	1686	1626	1.8	13500
YR800-4	5000	1500	349.3	96.1	0.86	1802	1692	1.8	14000
YR800-4	5600	1500	390.8	96.2	0.86	1935	1768	1.8	15000
YR710-6	1800	1000	131.4	95.3	0.83	1649	670	1.8	11000
YR710-6	2000	1000	145.8	95.4	0.83	1769	694	1.8	11500
YR710-6	2240	1000	163.3	95.4	0.83	1906	723	1.8	12000
YR710-6	2500	1000	182.1	95.5	0.83	2066	745	1.8	12500
YR800-6	2800	1000	203.9	95.5	0.83	1918	897	1.8	13000
YR800-6	3150	1000	226.5	95.6	0.84	2080	932	1.8	13500
YR800-6	3550	1000	255	957	0.84	2271	962	1.8	14000
YR900-6	4000	1000	287	95.8	0.84	1516	1624	1.8	15000
YR900-6	4500	1000	322.5	95.9	0.84	1705	1622	1.8	16000
YR900-6	5000	1000	358	96	0.84	1952	1562	1.8	17000
YR710-8	1400	750	105.6	94.5	0.81	1279	684	1.8	11000
YR710-8	1600	750	120.6	94.6	0.81	1502	661	1.8	11500
YR710-8	1800	750	135.5	94.7	0.81	1706	652	1.8	12500
YR800-8	2000	750	148.5	94.8	0.82	1193	1027	1.8	13000
YR800-8	2240	750	166.2	94.9	0.82	1304	1052	1.8	13500
YR800-8	2500	750	185.3	95	0.82	1436	1065	1.8	14000
YR800-8	2800	750	207.3	95.1	0.82	1594	1072	1.8	14500
YR900-8	3150	750	233	95.2	0.82	1440	1345	1.8	16500
YR900-8	3550	750	259.1	95.3	0.83	1603	0360	1.8	17500
YR1000-8	4000	750	291.7	95.4	0.83	1605	1526	1.8	18500
YR1000-8	4500	750	327.8	95.5	0.83	1810	1518	1.8	19000
YR1000-8	5000	750	363.8	95.6	0.83	2069	1468	1.8	19500
YR710-10	1250	600	97.2	94	0.79	925	836	1.8	10500
YR710-10	1400	600	108.7	94.1	0.79	1059	813	1.8	11000
YR710-10	1600	600	124.1	94.2	0.79	1063	940	1.8	11500
YR800-10	1800	600	139.5	94.3	0.79	1289	866	1.8	13500
YR800-10	2000	600	154.8	94.4	0.79	1419	872	1.8	14000
YR800-10	2240	600	173.2	94.5	0.79	1581	875	1.8	15000
YR900-10	2500	600	190.7	94.6	0.80	1595	960	1.8	16500
YR900-10	2800	600	213.4	94.7	0.80	1797	951	1.8	17000
YR1000-10	3150	600	236.8	94.8	0.81	1556	1232	1.8	18500
YR1000-10	3550	600	266.6	94.9	0.81	1780	1209	1.8	19500
YR710-12	900	500	73.3	93.3	0.76	810	696	1.8	11000
YR710-12	1000	500	81.3	93.4	0.76	911	683	1.8	11500
YR710-12	1120	500	91	93.5	0.76	1043	665	1.8	12000
YR800-12	1250	500	101.5	93.6	0.76	912	853	1.8	13000
YR800-12	1400	500	113.5	93.7	0.76	1045	829	1.8	14000
YR800-12	1600	500	129.6	93.8	0.76	1223	811	1.8	15000
YR900-12	1800	500	143.7	93.9	0.77	1224	903	1.8	15500
YR900-12	2000	500	159.5	94.0	0.77	1336	919	1.8	16500
YR900-12	2240	500	178.5	94.1	0.77	1471	933	1.8	17000
YR1000-12	2500	500	199	94.2	0.77	1280	1197	1.8	18500
YR1000-12	2800	500	222.6	94.3	0.77	1423	1203	1.8	19500
YR1000-12	3150	500	247	94.4	0.78	1603	1199	1.8	21000
YR1000-12	3550	500	278.1	94.5	0.78	1834	1177	1.8	22500
YR710-16	500	375	44.8	92.1	0.70	960	329	1.8	10500
YR710-16	560	375	50.1	92.2	0.70	1040	341	1.8	11000
YR710-16	630	375	56.3	92.3	0.70	1133	351	1.8	11500
YR710-16	710	375	63.4	92.4	0.70	1248	359	1.8	12000
YR800-16	800	375	70.3	92.5	0.71	776	652	1.8	13000
YR800-16	900	375	79.0	92.6	0.71	864	655	1.8	13500
YR800-16	1000	375	87.7	92.7	0.71	972	646	1.8	14500
YR800-16	1120	375	98.1	92.8	0.71	1113	629	1.8	15500
YR900-16	1250	375	109.4	92.9	0.71	1316	584	1.8	16500
YR900-16	1400	375	122.4	93	0.71	1451	593	1.8	17500
YR900-16	1600	375	139.7	93.1	0.71	1612	610	1.8	18500
YR1000-16	1800	375	154.9	93.2	0.72	1476	754	1.8	19500
YR1000-16	2000	375	171.9	93.3	0.72	1640	752	1.8	20500
YR1000-16	2240	375	192.3	93.4	0.72	1848	745	1.8	21500
YR1000-16	2500	375	214.4	93.5	0.72	0.97	727	1.8	22500
