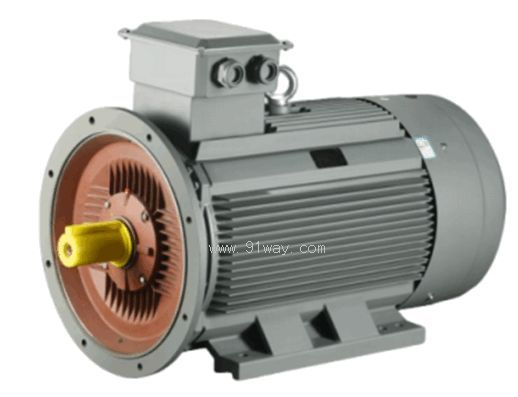

YE4系列高效三相異步電動機產品詳細說明：

YE4系列高效三相異步電動機的冷卻方式為：IC411,電機性能滿足GB/T755《旋轉電動機定額和性能》和JB/T13299《YE4系列(IP55)三相異步電動機技術條件(機座號80~400)》,效率值符合GB18613-2020中2級能效標準，并與國際標準IEC60034-30《單速三相籠型感應電動機能效分級》中的IE4一致。本系列產品能夠完全取代Y、YGM、YGM2、YE2、YE3系列低壓三相異步電動機。YE4系列高效三相異步電動機具有性能優良、高效、節能，溫升裕度大，壽命長，性能好，振動小，啟動性能優良，外形美觀，可靠性能高的優點。常用于驅動水泵、風機、壓縮機、傳送機和其他傳動機械被應用在節能環保改造、國家水利等項目。

YE4系列高效三相異步電動機技術參數

型號 Model	功率 Power	電壓 Voltage	電流 Current	轉速 Speed	效率 Efficiency	功率因數 COSφ	堵轉電流 額定電流	堵轉轉距 額定轉距	大轉距 額定轉距	額定轉矩 Rated torque	噪音 Noise	重量 Weight
	kW	V	A	r/min	η%	%	Ist/In	Tst/Tn	Tmax/Tn	N.m	dB(A)	Kg
同步轉速Synchronous Speed 3000r/min
YE4-80M1-2	0.75	380	1.6	2880	83.5	0.83	2.2	8.5	2.3	2.4	62	19
YE4-80M2-2	1.1	380	2.4	2880	85.2	0.83	2.2	8.5	2.3	3.5	62	20
YE4-90S-2	1.5	380	3.1	2890	86.5	0.85	2.2	9.0	2.3	4.8	67	25
YE4-90L-2	2.2	380	4.4	2890	88.0	0.86	2.2	9.0	2.3	7.0	67	26
YE4-100L-2	3	380	5.9	2910	89.1	0.87	2.2	9.5	2.3	9.6	74	36
YE4-112M-2	4	380	7.7	2910	90.0	0.88	2.2	9.5	2.3	12.8	77	48
YE4-132S1-2	5.5	380	10.4	2945	90.9	0.88	2.0	9.5	2.3	17.5	79	63
YE4-132S2-2	7.5	380	14.0	2940	91.7	0.89	2.0	9.5	2.3	23.9	79	67
YE4-160M1-2	11	380	20.3	2950	92.6	0.89	2.0	9.5	2.3	35.0	81	125
YE4-160M2-2	15	380	27.4	2950	93.3	0.89	2.0	9.5	2.3	47.8	81	138
YF4-160L-2	18.5	380	33.7	2950	93.7	0.89	2.0	9.5	2.3	58.9	81	162
YE4-180M-2	22	380	40.0	2965	94.0	0.89	2.0	9.5	2.3	70.0	83	170
YE4-200L1-2	30	380	54.2	2970	94.5	0.89	2.0	9.0	2.3	95.5	84	235
YE4-200L2-2	37	380	66.6	2975	94.8	0.89	2.0	9.0	2.3	117.8	84	260
YE4-225M-2	45	380	80.9	2975	95.0	0.89	2.0	9.0	2.3	143.3	86	330
YE4-250M-2	55	380	98.5	2980	95.3	0.89	2.0	9.0	2.3	175.1	89	410
YE4-280S-2	75	380	134	2980	95.6	0.89	1.8	8.5	2.3	238.8	91	466
YE4-280M-2	90	380	160	2980	95.8	0.89	1.8	8.5	2.3	286.5	91	559
YE4-280L-2	110	380	196	2975	96.0	0.89	1.8	8.5	2.3	350.2	92	660
YE4-315S-2	110	380	196	2975	96.0	0.89	1.8	8.5	2.3	350.2	92	895
YE4-315M-2	132	380	234	2975	96.2	0.89	1.8	8.5	2.3	420.2	92	975
YE4-315L1-2	160	380	284	2975	96.3	0.89	1.8	8.5	2.2	509.3	92	1040
YF4-315L2-2	185	380	328	2975	96.4	0.89	1.8	8.5	2.2	588.9	92	1090
YE4-315L3-2	200	380	354	2975	96.5	0.89	1.8	8.5	2.2	636.7	92	1090
YE4-315L4-2	220	380	385	2985	96.5	0.90	1.6	8.5	2.2	700.3	100	1190
YE4-355M1-2	220	380	385	2985	96.5	0.90	1.6	8.5	2.2	700.3	100	1600
YE4-355M2-2	250	380	433	2985	96.5	0.91	1.6	8.5	2.2	795.8	100	1670
YE4-355L1-2	280	380	484	2985	96.5	0.91	1.6	8.5	2.2	891.3	100	1790
YE4-355L2-2	315	380	545	2985	96.5	0.91	1.6	8.5	2.2	1003	100	1820
YE4-355L3-2	355	380	621	2985	96.5	0.90	0.9	8.6	1.8	1130	100	1860



型號 Model	功率 Power	電壓 Voltage	電流 Current	轉速 Speed	效率 Efficiency	功率因數 COSφ	堵轉電流 額定電流	堵轉轉距 額定轉距	大轉距 額定轉距	額定轉矩 Rated torque	噪音 Noise	重量 Weight
	kW	V	A	r/min	η%	%	Ist//n	Tst/Tn	Tmax/Tn	N.m	dB(A)	Kg
YE4-4001-2	355	380	621	2985	96.5	0.90	0.9	8.6	1.8	1130	97	2665
YE4-4002-2	400	380	700	2985	96.5	0.90	0.9	8.6	1.8	1273	97	2730
YE4-4003-2	450	380	787	2985	96.5	0.90	0.8	8.6	1.8	1433	97	2775
YF4-4004-2	500	380	875	2985	96.5	0.90	0.8	8.6	1.8	1592	97	3330
YE4-4005-2	560	380	969	2985	96.5	0.91	0.8	8.7	1.8	1783	97	3595
YE4-4006-2	630	660	628	2985	96.5	0.91	0.8	8.7	1.8	2006	97	3675
同步轉速 Synchronous Speed 1500r/min
YE4-80M1-4	0.55	380	1.4	1435	83.9	0.73	2.3	8.5	2.3	4.7	56	18
YE4-80M2-4	0.75	380	1.8	1435	85.7	0.74	2.3	8.5	2.3	4.8	56	18
YE4-90S-4	1.1	380	2.6	1440	87.2	0.75	2.3	8.5	2.3	7.0	59	24
YE4-90L-4	1.5	380	3.4	1440	88.2	0.76	2.3	9.0	2.3	9.6	59	28
YE4-100L1-4	2.2	380	4.7	1450	89.5	0.79	2.3	9.0	2.3	14.0	64	30
YE4-100L2-4	3	380	6.3	1450	90.4	0.80	2.3	9.5	2.3	19.0	64	35
YE4-112M-4	4	380	8.3	1450	91.1	0.80	2.2	9.5	2.3	25.5	65	42
YE4-132S-4	5.5	380	11.4	1470	91.9	0.80	2.0	9.5	2.3	35.0	71	69
YE4-132M-4	7.5	380	15.2	1470	92.6	0.81	2.0	9.5	2.3	47.8	71	79
YE4-160M-4	11	380	21.6	1475	93.3	0.83	2.0	9.5	2.3	70.0	73	137
YE4-160L-4	15	380	28.9	1475	93.9	0.84	2.0	9.5	2.3	95.5	73	152
YE4-180M-4	18.5	380	35.1	1480	94.2	0.85	2.0	9.5	2.3	117.8	76	183
YE4-180L-4	22	380	41.6	1480	94.5	0.85	2.0	9.5	2.3	140.1	76	212
YE4-200L-4	30	380	56.5	1485	94.9	0.85	2.0	9.0	2.3	191.0	76	257
YE4-225S-4	37	380	69.5	1485	95.2	0.85	2.0	9.0	2.3	235.6	78	327
YE4-225M-4	45	380	843	1485	95.4	0.85	2.0	9.0	2.3	286.5	78	360
YE4-250M-4	55	380	102	1485	95.7	0.86	2.0	9.0	2.3	350.1	79	430
YF4-280S-4	75	380	136	1490	96.0	0.87	2.0	8.5	2.3	477.2	80	541
YE4-280M-4	90	380	162	1490	96.1	0.88	2.0	8.5	2.3	573.0	80	580
YE4-280L-4	110	380	195	1485	96.3	0.89	1.8	8.5	2.2	700.3	80	660
YE4-315S-4	110	380	195	1485	96.3	0.89	1.8	8.5	2.2	700.3	88	980
YE4-315M-4	132	380	234	1485	96.4	0.89	1.8	8.5	2.2	840.4	88	985
YE4-315L1-4	160	380	280	1485	96.6	0.90	1.8	8.5	2.2	1019	88	1150
YE4-315L2-4	185	380	323	1485	96.7	0.90	1.8	8.5	2.2	1178	88	1185



型號 Model	功率 Power	電壓 Voltage	電流 Current	轉速 Speed	效率 Efficiency	功率因數 COSφ	堵轉電流 額定電流	堵轉轉距 額定轉距	大轉距 額定轉距	額定轉矩 Rated torque	噪音 Noise	重量 Weight
	kW	V	A	r/min	η%	%	Ist/In	Tst/Tn	Tmax/Tn	N.m	dB(A)	Kg
YE4-315L3-4	200	380	349	1485	96.7	0.90	1.8	8.5	2.2	1273	88	1185
YE4-315L4-4	220	380	384	1490	96.7	0.90	1.8	8.5	2.2	1401	88	1285
YE4-355M1-4	220	380	384	1490	96.7	0.90	1.8	8.5	2.2	1401	92	1630
YE4-355M2-4	250	380	436	1490	96.7	0.90	1.8	8.5	2.2	1592	92	1680
YE4-355L1-4	280	380	489	1490	96.7	0.90	1.8	8.5	2.2	1783	92	1750
YE4-355L2-4	315	380	550	1490	96.7	0.90	1.8	8.5	2.2	2006	92	1820
YE4-355L3-4	355	380	634	1490	96.7	0.88	0.9	8.5	1.8	2260	92	1860
YE4-4001-4	355	380	634	1490	96.7	0.88	0.9	8.5	1.8	2260	92	2885
YE4-4002-4	400	380	714	1490	96.7	0.88	0.9	8.5	1.8	2547	92	3015
YE4-4003-4	450	380	803	1490	96.7	0.88	0.8	8.5	1.8	2865	92	3045
YE4-4004-4	500	380	893	1490	96.7	0.88	0.8	8.5	1.8	3183	93	3510
YE4-4005-4	560	380	989	1490	96.7	0.89	0.8	8.6	1.8	3565	93	3605
YE4-4006-4	630	660	640	1490	96.7	0.89	0.8	8.6	1.8	4011	93	3725
同步轉速 SynchronousSpeed 1000r/min
YE4-90S-6	0.75	380	2.0	950	82.7	0.70	2.1	7.5	2.1	7.2	57	32
YE4-90L-6	1.1	380	2.8	950	84.5	0.70	2.1	7.5	2.1	10.5	57	34
YE4-100L-6	1.5	380	3.7	955	85.9	0.71	2.1	7.5	2.1	14.3	61	41
YE4-112M-6	2.2	380	5.4	955	87.4	0.71	2.1	7.5	2.1	21.0	65	48
YE4-132S-6	3	380	7.2	970	88.6	0.71	2.0	7.5	2.1	28.7	69	60
YE4-132M1-6	4	380	9.4	970	89.5	0.72	2.0	8.0	2.1	38.2	69	70
YE4-132M2-6	5.5	380	12.8	970	90.5	0.72	2.0	8.0	2.1	52.5	69	80
YE4-160M-6	7.5	380	16.4	980	91.3	0.76	2.0	8.0	2.1	71.6	73	130
YE4-160L-6	11	380	23.5	980	92.3	0.77	2.0	8.5	2.1	105.1	73	157
YE4-180L-6	15	380	30.7	985	92.9	0.80	2.0	8.5	2.1	143.3	73	190
YE4-200L1-6	18.5	380	37.6	985	93.4	0.80	2.0	8.5	2.3	176.7	73	246
YE4-200L2-6	22	380	44.0	985	93.7	0.81	2.0	8.5	2.1	210.1	73	270
YE4-225M-6	30	380	59.0	990	94.2	0.82	2.0	8.5	2.1	286.5	74	315
YE4-250M-6	37	380	71.7	990	94.5	0.83	2.0	8.3	2.1	353.3	76	395
YE4-280S-6	45	380	86.9	990	94.8	0.83	2.0	8.5	2.0	429.8	78	530
YE4-280M-6	55	380	105	990	95.1	0.84	2.0	8.5	2.0	525.3	78	603
YE4-280L-6	75	380	142	990	94.4	0.84	1.6	8.0	2.0	716.3	78	736



型號 Model	功率 Power	電壓 Voltage	電流 Current	轉速   Speed	效率 Efficiency	功率因數 COSφ	堵轉電流 額定電流	堵轉轉距 額定轉距	大轉距 額定轉距	額定轉矩 Rated torque	噪音 Noise	重量 Weight
	kW	V	A	r/min	η%	%	Ist/ln	Tst/Tn	Tmax/Tn	N.m	dB(A)	Kg
YE4-315S-6	75	380	142	990	95.4	0.84	1.6	8.0	2.0	716.3	83	850
YE4-315M-6	90	380	168	990	95.6	0.85	1.6	8.0	2.0	859.5	83	925
YE4-315L1-6	110	380	205	990	95.8	0.85	1.6	8.0	2.0	1051	83	1085
YE4-315L2-6	132	380	243	990	96.0	0.86	1.6	8.0	2.0	1261	83	1220
YE4-315L3-6	160	380	294	990	96.2	0.86	1.6	8.0	2.0	1528	83	1300
YE4-355M1-6	160	380	294	990	96.2	0.86	1.6	8.0	2.0	1528	85	1630
YE4-355M2-6	185	380	340	990	96.2	0.86	1.6	8.0	2.0	1767	85	1680
YE4-355M3-6	200	380	367	990	96.3	0.86	1.6	8.0	2.0	1910	85	1750
YE4-355L1-6	220	380	404	990	96.3	0.86	1.6	8.0	2.0	2101	85	1830
YE4-355L2-6	250	380	458	990	96.5	0.86	1.6	8.0	2.0	2387	85	1920
YE4-355L3-6	280	380	538	990	96.5	0.82	1.6	8.0	2.2	2674	85	1960
YE4-355L4-6	315	380	604	995	96.6	0.82	0.9	7.9	1.8	3008	91	2875
YE4-4001-6	355	380	681	995	96.6	0.82	0.9	7.9	1.8	3390	91	2985
YE4-4002-6	400	380	758	995	96.6	0.83	0.9	8.0	1.8	3820	92	3390
YE4-4003-6	450	380	853	995	96.6	0.83	0.8	8.0	1.8	4298	92	3555
YE4-4004-6	500	660	546	995	96.6	0.83	0.8	8.0	1.8	4775	92	3755
同步轉速 Synchronous Speed 750r/min
YE4-100L1-8	0.75	380	2.2	710	78.4	0.66	2.0	7.0	2.0	9.6	59	48
YE4-100L2-8	1.1	380	3.1	710	80.8	0.67	2.0	7.0	2.0	14.0	59	49
YE4-112M-8	1.5	380	4.0	710	82.6	0.69	2.0	7.0	2.0	19.1	61	50
YE4-132S-8	2.2	380	5.7	710	84.5	0.70	1.8	7.5	2.0	28.2	64	60
YE4-132M-8	3	380	7.6	710	85.9	0.70	1.8	7.8	2.0	38.2	64	72
YE4-160M1-8	4	380	9.8	720	87.1	0.71	1.8	7.9	2.0	50.9	68	123
YE4-160M2-8	5.5	380	13.1	720	88.3	0.72	1.8	8.1	2.0	70.0	68	139
YE4-160L-8	7.5	380	17.2	720	89.3	0.74	1.8	7.8	2.0	95.5	68	152
YE4-180L-8	11	380	25.0	730	90.4	0.74	1.8	7.9	2.0	140.1	70	180
YE4-200L-8	15	380	33.3	730	91.2	0.75	1.8	8.0	2.0	191.0	73	230
YE4-225S-8	18.5	380	40.9	730	91.7	0.75	1.8	8.1	2.0	235.6	73	273
YE4-225M-8	22	380	47.8	730	92.1	0.76	1.8	8.3	2.0	280.1	73	313
YE4-250M-8	30	380	63.9	730	92.7	0.77	1.8	7.9	2.0	382.0	75	392
YE4-280S-8	37	380	77.4	735	93.1	0.78	1.8	7.9	2.0	471.1	76	485



型號 Model	功率 Power	電壓 Voltage	電流 Current	轉速 Speed	效率 Efficiency	功率因數 COSφ	堵轉電流 額定電流	堵轉轉距 額定轉距	大轉距 額定轉距	額定轉矩 Rated torque	噪音 Noise	重量 Weight
	kW	V	A	r/min	η%	%	Ist/In	Tst/Tn	Tmax/Tn	N.m	dB(A)	Kg
YE4-280M-8	45	380	93.9	735	93.4	0.78	1.8	7.9	2.0	573.0	76	576
YE4-280L-8	55	380	111	740	93.7	0.80	1.6	8.2	2.0	700.3	76	630
YE4-315S-8	55	380	111	740	93.7	0.80	1.6	8.2	2.0	700.3	82	1000
YE4-315M-8	75	380	151	740	94.2	0.80	1.6	7.6	2.0	955.0	82	1005
YE4-315L1-8	90	380	179	740	94.4	0.81	1.6	7.7	2.0	1146	82	1080
YE4-315L2-8	110	380	218	740	94.7	0.81	1.6	7.7	2.0	1401	82	1160
YE4-315L3-8	132	380	261	740	94.9	0.81	1.6	7.7	2.0	1681	89	1225
YE4-355M1-8	132	380	261	740	94.9	0.81	1.6	7.7	2.0	1681	89	1580
YE4-355M2-8	160	380	312	740	95.1	0.82	1.6	7.7	2.0	2037	89	1690
YE4-355L1-8	185	380	359	740	95.4	0.82	1.6	7.7	2.0	2356	89	1840
YE4-355L2-8	200	380	393	740	95.4	0.81	1.6	7.7	2.0	2547	89	1940
YE4-355L3-8	220	380	438	740	95.4	0.82	1.6	7.8	2.0	2801	89	2070
YE4-355L4-8	250	380	498	740	95.4	0.80	1.1	7.6	1.8	3183	89	2840
YE4-4001-8	315	380	627	740	95.4	0.80	0.9	7.6	1.8	4011	89	3035
YE4-4002-8	355	380	707	745	95.4	0.80	0.9	7.6	1.8	4520	91	3625
YE4-4003-8	400	660	458	745	94.5	0.80	0.9	7.6	1.8	5093	91	3820
同步轉速 Synchronous Speed 600r/min
YE4-315S-10	45	380	98.0	590	93.0	0.75	1.5	6.2	2.0	716.2	82	785
YE4-315M-10	55	380	120	590	93.0	0.75	1.5	5.8	2.0	875.4	82	925
YE4-315L1-10	75	380	160	590	93.8	0.76	1.5	5.9	2.0	1194	82	1030
YE4-315L2-10	90	380	189	590	93.8	0.77	1.5	6.0	2.0	1433	82	1080
YE4-355M1-10	90	380	188	590	93.3	0.77	1.45	6.0	2.0	1433	89	1510
YE4-355M2-10	110	380	228	590	94.1	0.78	1.45	6.0	2.0	1433	89	1630
YE4-355M3-10	132	380	272	590	94.6	0.78	1.45	6.0	2.0	1751	89	1750
YE4-355L1-10	160	380	329	590	94.6	0.78	1.45	6.0	2.0	2547	89	1910
YE4-355L2-10	185	380	381	590	94.6	0.78	1.45	6.0	2.0	2945	89	2040
YE4-4001-10	200	380	433	590	94.9	0.74	1.1	7.0	1.8	3183	89	2915
YE4-4002-10	250	380	541	590	94.9	0.74	1.1	7.0	1.8	3979	89	3045
YE4-4003-10	315	380	655	595	94.9	0.77	1.1	7.1	1.8	5014	91	3680
YE4-4004-10	355	380	738	595	94.9	0.77	0.9	7.1	1.8	5650	91	3930
