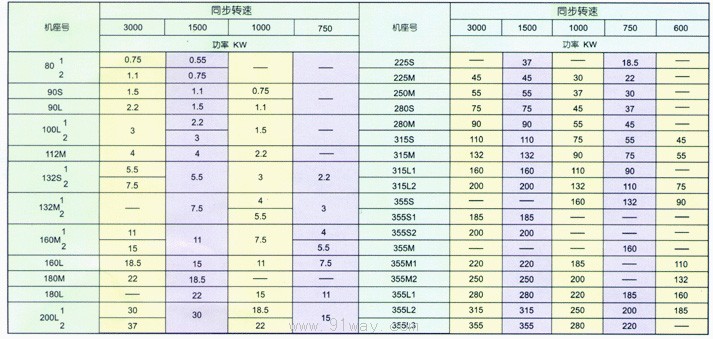

機座號
Machine base
number

同步轉速 Synchronism speed (r/min)

B3
B35
V1

B6,B7
B8,V3,V5,
V6,V15

B5

機座長度
Machine base length
S：短機座
S：short machine base
M：中機座
M：mid machine base
L：長機座
L：long machine base
安裝型式
Mounting mode
B：臥式
B：Lie type
V：立式
V：Post type
防爆標志 EXd Ⅱ BT4
Explosion-proofing marker
具有效率高、轉矩
大、溫升低、噪聲低、
振動小、結構先進、
安全可靠等特點
Owning the advantages
of high-efficiency、
big torque、low
temp、raising、low-
noise、few vibration
and advanced
structure, safe and
reliable.

3000

1500

1000

750

600

功率 Power (KW)

80

0.75

0.55

-

-

-

0.1

0.75

90S

1.5

1.1

0.75

-

-

90L

2.2

1.5

1.1

-

-

100L

3

2.2

1.5

-

-

3

112M

4

4

2.2

-

-

132S

5.5

5.5

3

2.2

-

7.5

132M

-

7.5

4

3

-

5.5

160M

11

11

7.5

4

-

15

5.5

160L

18.5

15

11

7.5

-

180M

22

18.5

-

-

-

180L

-

22

15

11

-

200L

30

30

18.5

15

-

37

2

225S

-

37

-

18.5

-

225M

45

45

30

22

-

250M

55

55

37

30

-

280S

75

75

45

37

-

280M

90

90

55

45

-

315S

110

110

75

55

55

315M

132

132

90

75

55

315L

160

160

110

90

-

200

200

132

110

75
